A pressure vessel for the storage of liquefied petroleum gas.
DETAIL — Details
Crops from the same high-resolution photoTechnical notes：LPG Vessel
An LPG vessel stores propane, butane and other fuel gases liquefied under pressure. It is high-pressure gas equipment, so design, fabrication and installation must follow the high-pressure gas regulations. HUNG JUNG has built 20 m³ and 61 m³ underground gas tanks (SPV450) for CPC Corporation, Taiwan.
- Typical applications
- Industrial and commercial gas supply stations
- Underground or above-ground gas storage
- Fuel systems in petrochemical plants
- Common materials
- SPV450 (JIS G3115 pressure vessel plate)
- SA-516 Gr.70
- Applicable codes
- Taiwan high-pressure gas regulations
- ASME BPVC Section VIII, Division 1 (U designator)
FAQ
Underground or above-ground?

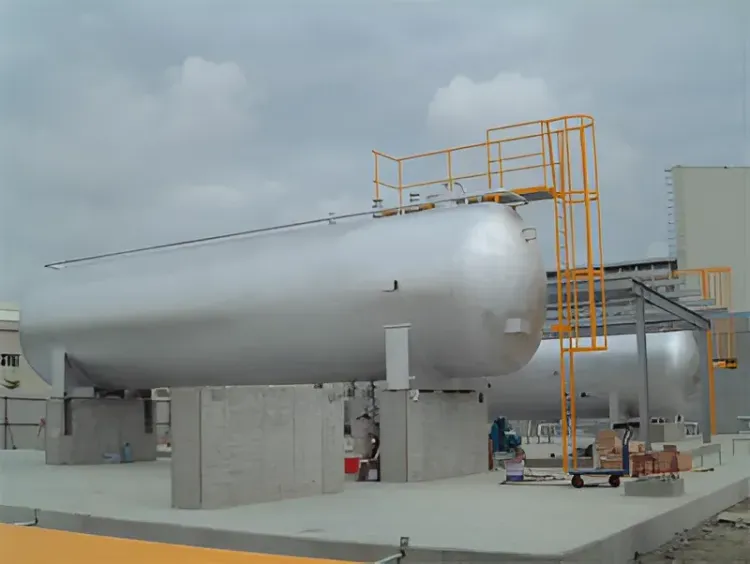

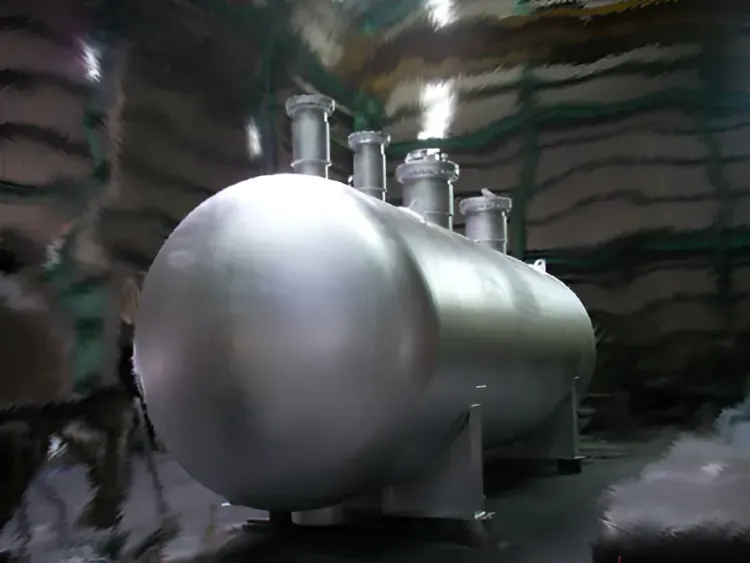

Underground tanks save space and are less exposed to ambient temperature and external impact, but need corrosion protection and burial works; above-ground tanks are easier to inspect and maintain. The choice depends on site, regulations and safety distances.
What gas tanks has HUNG JUNG built?
References include 20 m³ and 61 m³ underground gas tanks (SPV450) for CPC Corporation, Taiwan.
BUILT EXAMPLES — Built examples
2 photosSPECIFICATIONS
Specifications
| Type | Designed to your process conditions |
|---|---|
| Design pressure | Designed to your process conditions |
| Design temperature | Designed to your process conditions |
| Capacity range | Designed to your process conditions |
| Shell material | Designed to your process conditions |
| Surface finish | Designed to your process conditions |
| Applicable code | Designed to your process conditions |
Specifications are engineered to each project. Please include your design conditions with your inquiry.
COMPLIANCE
REQUEST A QUOTE · LPG Vessel
Inquire about LPG Vessel.
Share your design pressure, design temperature, capacity, material, medium and applicable code, and our engineers will evaluate the design.
