IMDGPortable Tank
國際危險品運輸容器
A portable tank designed and built to UN regulations for dangerous goods, mounted in a frame for intermodal transport.
DETAIL — Details
Crops from the same high-resolution photoTechnical notes：IMDG Portable Tank

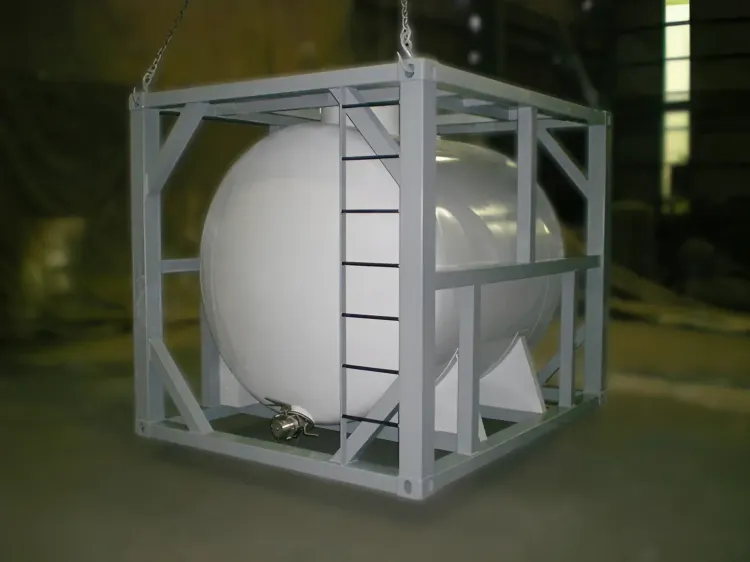

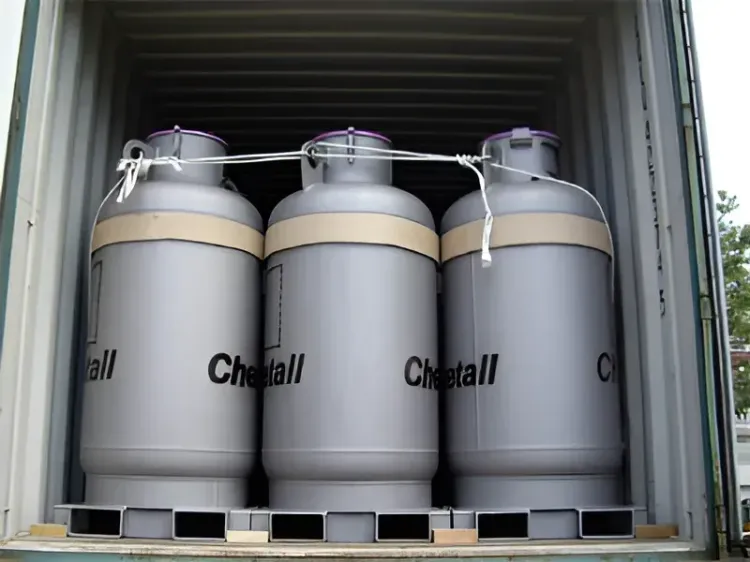

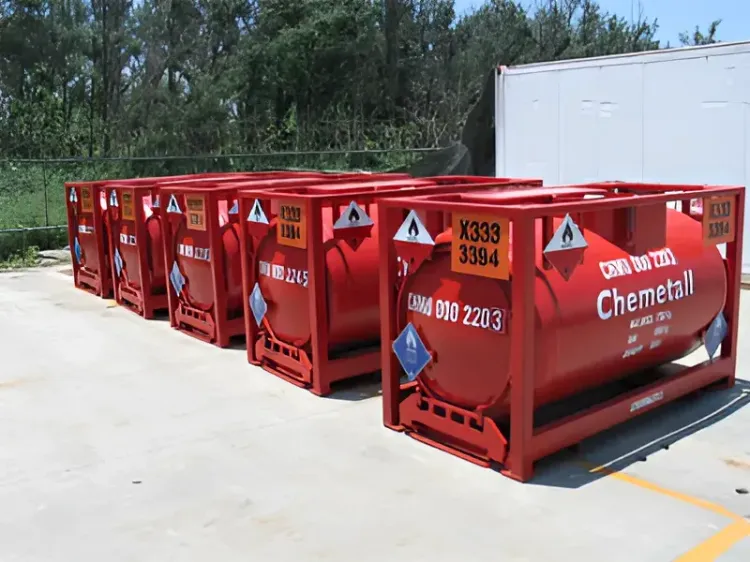

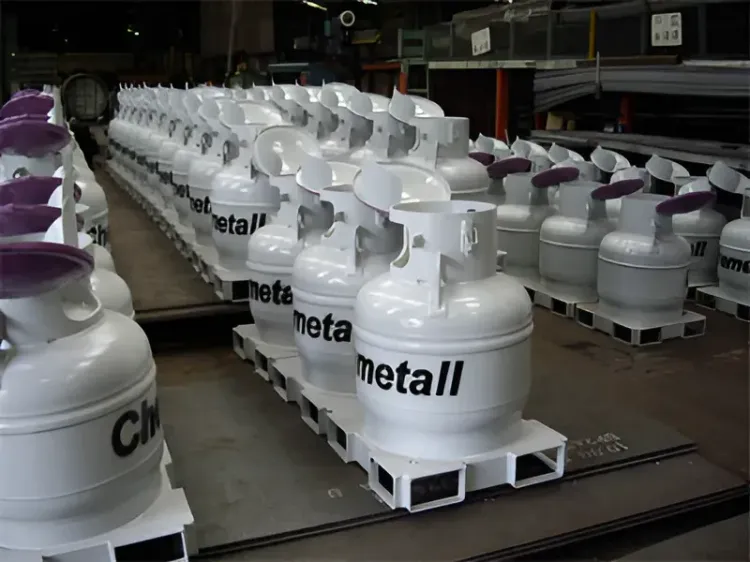

An IMDG portable tank (UN portable tank) is designed, built and tested to Chapter 6.7 of the IMO International Maritime Dangerous Goods (IMDG) Code and mounted in an ISO frame for intermodal transfer between ship, truck and rail. HUNG JUNG has built 125 L, 450 L, 1,850 L, 1 m³ and 7.5 m³ stainless transport containers.
- Typical applications
- Transport of high-purity electronic chemicals
- Transport of chemical feedstocks and dangerous goods
- Cylinders for liquefied gases such as ammonia
- Common materials
- SA-240 304/316L
- SA-516 Gr.70 (portable chemical cylinders)
- Applicable codes
- IMO IMDG Code Chapter 6.7 (UN portable tanks)
- ASME BPVC Section VIII, Division 1 (pressure shell)
FAQ
How often must a UN portable tank be inspected?
Under IMDG Code 6.7.2.19, the shell is inspected and tested before first use, then periodically at intervals of no more than five years, with an intermediate inspection midway (about 2.5 years). A tank whose inspection has expired may not be filled and offered for transport, subject to limited exceptions.
Which IMDG Code edition applies now?
The 2024 Edition (Amendment 42-24) is mandatory from 1 January 2026; voluntary application was permitted from 2025.
BUILT EXAMPLES — Built examples
5 photosSPECIFICATIONS
Specifications
| Type | Designed to your process conditions |
|---|---|
| Design pressure | Designed to your process conditions |
| Design temperature | Designed to your process conditions |
| Capacity range | Designed to your process conditions |
| Shell material | Designed to your process conditions |
| Surface finish | Designed to your process conditions |
| Applicable code | Designed to your process conditions |
Specifications are engineered to each project. Please include your design conditions with your inquiry.
COMPLIANCE
REQUEST A QUOTE · IMDG Portable Tank
Inquire about IMDG Portable Tank.
Share your design pressure, design temperature, capacity, material, medium and applicable code, and our engineers will evaluate the design.
Or call +886 3 479 9131
