PolishedStainless Tank
不鏽鋼拋光容器
A stainless steel vessel with polished surfaces that are smooth and easy to clean, suited to processes with high cleanliness requirements.
DETAIL — Details
Crops from the same high-resolution photoTechnical notes：Polished Stainless Tank

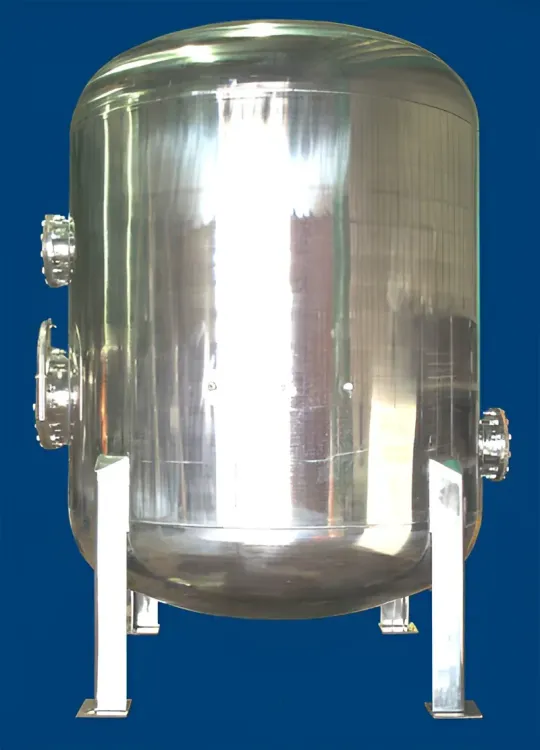

A polished stainless tank is a stainless steel storage or vacuum vessel whose surfaces are mechanically polished. Smoother surfaces hold less residue and clean more thoroughly, so these tanks are used where cleanliness and contamination control matter. HUNG JUNG has built a 10 m³ polished stainless vacuum tank.
- Typical applications
- Biotech and pharmaceutical preparation and storage
- Food and beverage processing
- High-purity chemicals for semiconductor and display fabs
- Common materials
- SA-240 304/304L
- SA-240 316L (molybdenum-bearing, better chloride pitting resistance)
- Applicable codes
- ASME BPVC Section VIII, Division 1 (U designator)
- Taiwan Boiler and Pressure Vessel Safety Rules and Construction Standards
FAQ
What should I specify for a polished tank?
Volume, design pressure or vacuum, design temperature, medium, material (304L or 316L), internal surface finish, and whether you need a jacket, agitator or CIP connections.
304L or 316L?
316L contains molybdenum and resists chloride pitting better than 304L, so it is common for chemical solutions, salts and cleaning agents. 304L may suit pure water or food service. The final choice depends on the actual medium and temperature.
BUILT EXAMPLES — Built examples
1 photosSPECIFICATIONS
Specifications
| Type | Designed to your process conditions |
|---|---|
| Design pressure | Designed to your process conditions |
| Design temperature | Designed to your process conditions |
| Capacity range | Designed to your process conditions |
| Shell material | Designed to your process conditions |
| Surface finish | Designed to your process conditions |
| Applicable code | Designed to your process conditions |
Specifications are engineered to each project. Please include your design conditions with your inquiry.
COMPLIANCE
REQUEST A QUOTE · Polished Stainless Tank
Inquire about Polished Stainless Tank.
Share your design pressure, design temperature, capacity, material, medium and applicable code, and our engineers will evaluate the design.
Or call +886 3 479 9131
