JacketedVessel
夾套型容器
A vessel with an outer jacket through which a heating or cooling medium flows to control the temperature of its contents.
DETAIL — Details

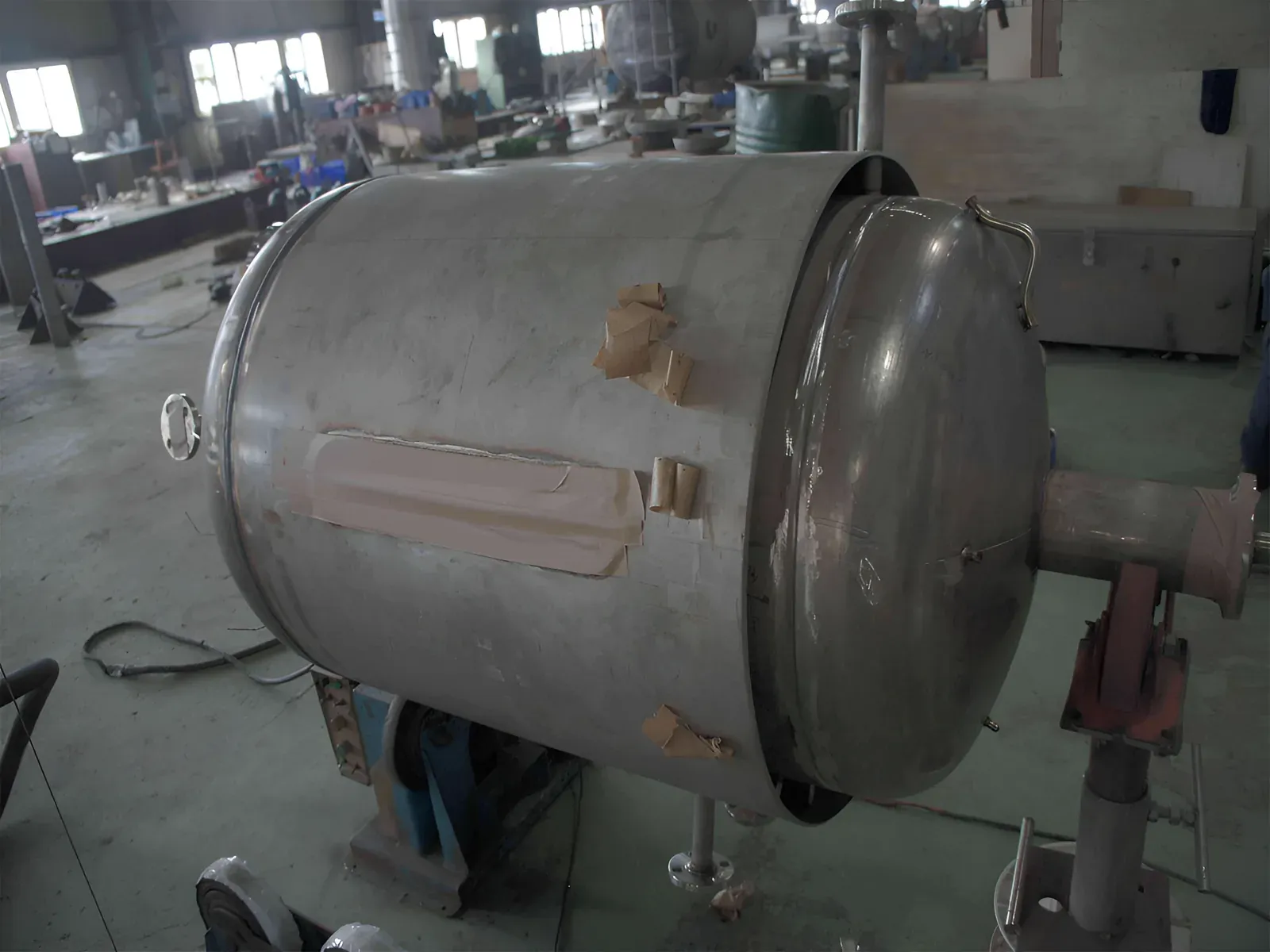

Crops from the same high-resolution photoTechnical notes：Jacketed Vessel
A jacketed vessel has an outer jacket around the inner shell through which steam, thermal oil or cooling water flows to heat or cool the contents. The inner shell and the jacket usually have separate design pressures and temperatures that are calculated separately.
- Typical applications
- Chemical reactions and heated storage
- Food heating, cooling and pasteurisation
- Viscous products that need temperature control
- Common materials
- SA-240 304/316L
- SA-516 Gr.70
- Applicable codes
- ASME BPVC Section VIII, Division 1 (U designator)
- Taiwan Boiler and Pressure Vessel Safety Rules and Construction Standards
FAQ
Is a jacketed vessel a Category 1 pressure vessel in Taiwan?
Under Taiwan’s Boiler and Pressure Vessel Safety Rules, a vessel that receives external steam or another heating medium to heat solids or liquids inside, with internal pressure above atmospheric, is a Category 1 pressure vessel and must be inspected. Confirm against your design conditions.
What do you need for a quote?
Design pressure and temperature for both the inner shell and the jacket, the heating or cooling medium, required duty, volume and material.
SPECIFICATIONS
Specifications
| Type | Designed to your process conditions |
|---|---|
| Design pressure | Designed to your process conditions |
| Design temperature | Designed to your process conditions |
| Capacity range | Designed to your process conditions |
| Shell material | Designed to your process conditions |
| Surface finish | Designed to your process conditions |
| Applicable code | Designed to your process conditions |
Specifications are engineered to each project. Please include your design conditions with your inquiry.
REQUEST A QUOTE · Jacketed Vessel
Inquire about Jacketed Vessel.
Share your design pressure, design temperature, capacity, material, medium and applicable code, and our engineers will evaluate the design.
Or call +886 3 479 9131
