GasBuffer Tank
氣體緩衝槽
A pressure vessel that stabilises line pressure and absorbs fluctuations in gas flow.
DETAIL — Details
Crops from the same high-resolution photoTechnical notes：Gas Buffer Tank

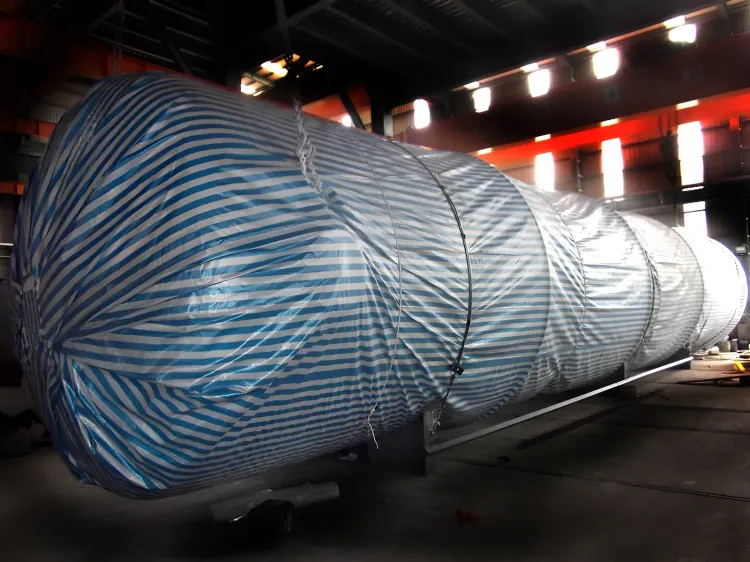

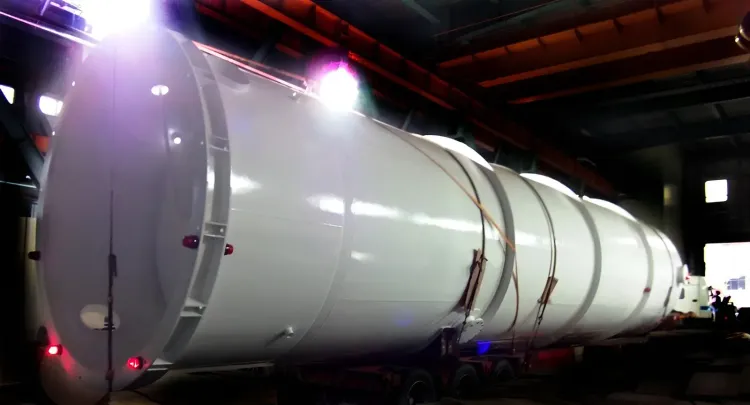

A gas buffer tank sits on a compressor discharge or gas supply line to absorb flow and pressure fluctuations so downstream equipment gets a steady supply. HUNG JUNG has built a 165 m³ gaseous oxygen buffer tank and a 187 m³ buffer tank, as well as nitrogen, natural gas and n-hexane buffer tanks.
- Typical applications
- Industrial gas plants (oxygen, nitrogen)
- Nitrogen systems in semiconductor and petrochemical plants
- Natural gas and process gases
- Common materials
- SA-516 Gr.70
- SA-240 304/304L
- A841
- Applicable codes
- ASME BPVC Section VIII, Division 1 (U designator)
- Taiwan Boiler and Pressure Vessel Safety Rules and Construction Standards
- High-pressure gas regulations (where applicable)
FAQ
How large a buffer tank can HUNG JUNG build?
The largest single vessels in our references are a 165 m³ gaseous oxygen buffer tank and a 187 m³ buffer tank. Our plant has 60-ton overhead cranes for fabricating and handling large vessels.
How is buffer volume sized?
From compressor capacity, the allowable pressure swing and downstream demand variation. Send these conditions and our engineers will evaluate the size.

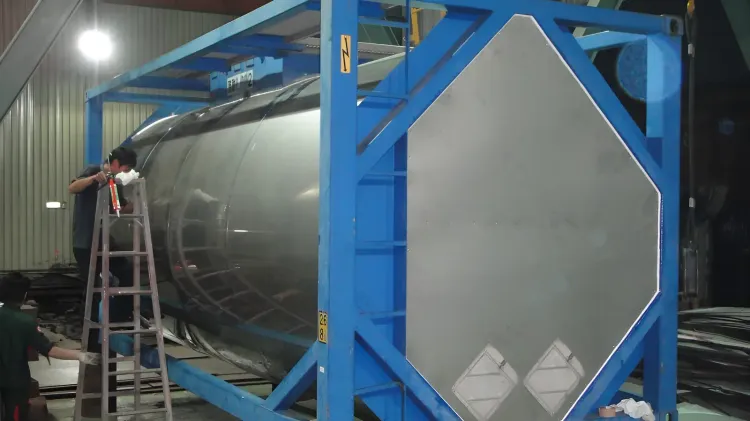

BUILT EXAMPLES — Built examples
3 photosSPECIFICATIONS
Specifications
| Type | Designed to your process conditions |
|---|---|
| Design pressure | Designed to your process conditions |
| Design temperature | Designed to your process conditions |
| Capacity range | Designed to your process conditions |
| Shell material | Designed to your process conditions |
| Surface finish | Designed to your process conditions |
| Applicable code | Designed to your process conditions |
Specifications are engineered to each project. Please include your design conditions with your inquiry.
COMPLIANCE
REQUEST A QUOTE · Gas Buffer Tank
Inquire about Gas Buffer Tank.
Share your design pressure, design temperature, capacity, material, medium and applicable code, and our engineers will evaluate the design.
Or call +886 3 479 9131
